Vector

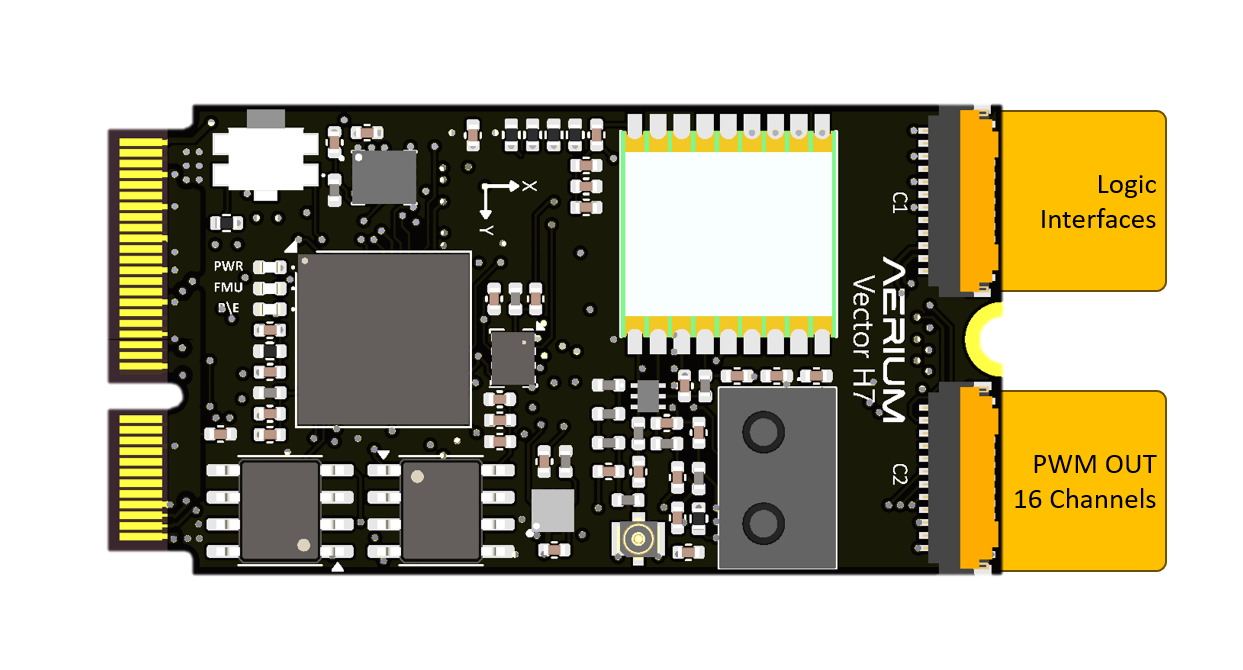

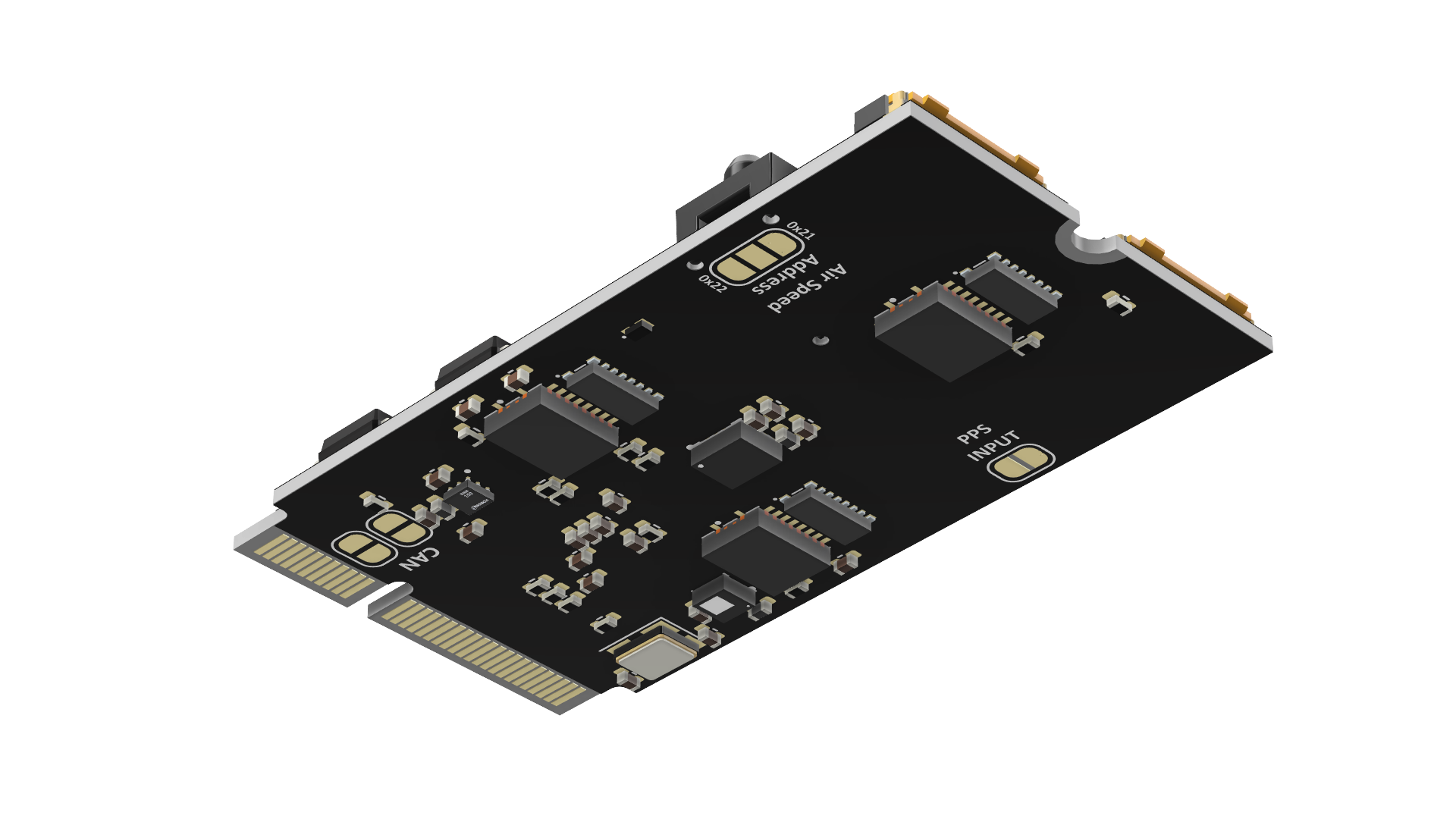

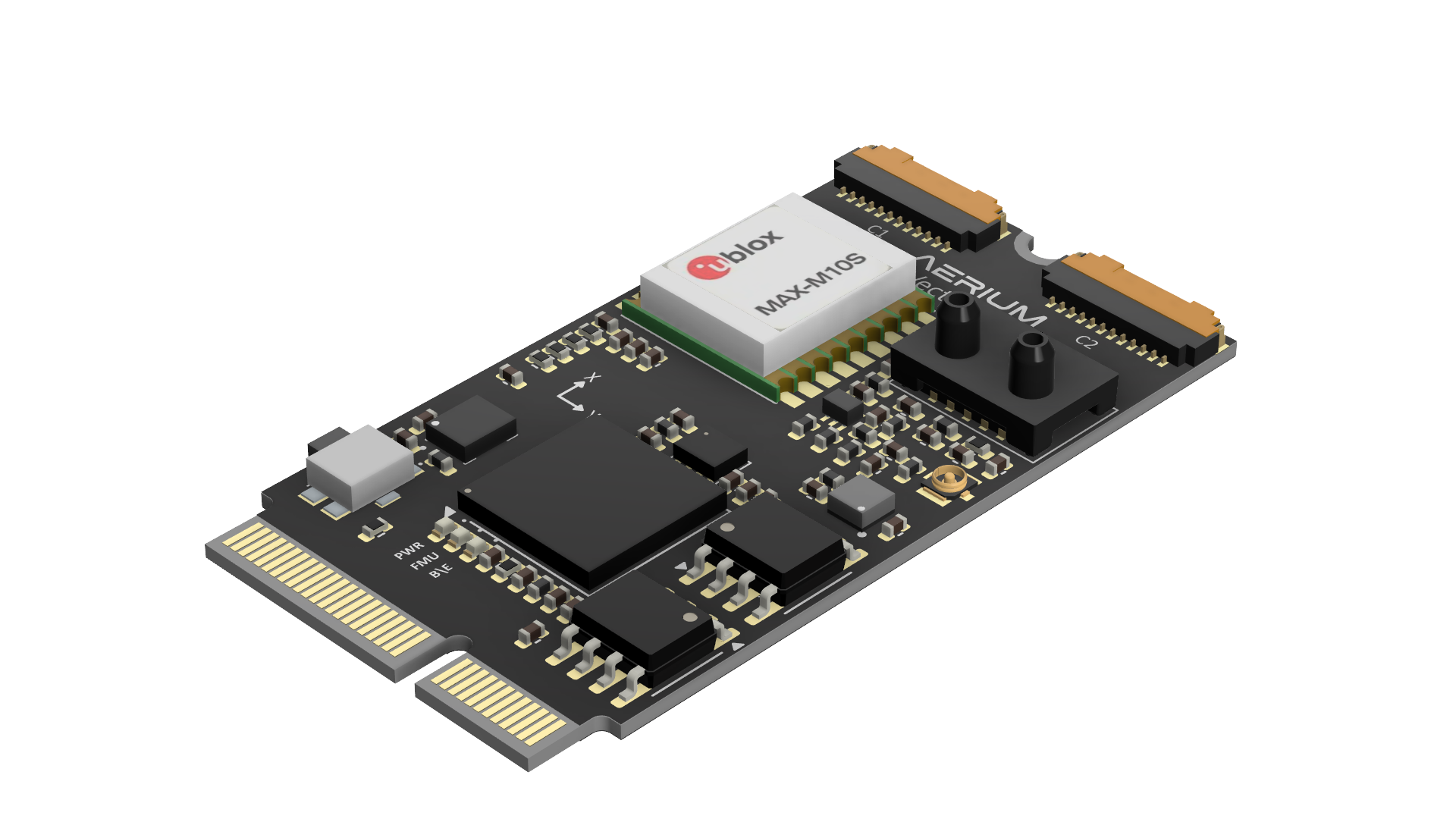

The Aerium Vector is a compact, M.2‑Key E integrated flight controller featuring redundant sensor arrays, GNSS, and airspeed sensing, built for Pixhawk-compatible UAVs and robotics platforms.
General
- All‑in‑one flight controller combining:
- Dual 6‑axis IMUs (accelerometer + gyroscope)
- Dual barometric pressure sensors
- Dual magnetometers (compasses)
- Integrated high‑sensitivity GPS
- Integrated differential pitot airspeed sensor
- Standard M.2 2242 Key E form factor (22 × 42 mm), ideal for space‑constrained systems.
Mechanical
- Weight: ~12 g
- Dimensions: 22 mm × 42 mm (M.2 2242 Key E)
- Mounts using M2 screw
Electrical
General
- Input voltage: 3.3 V (powered directly from M.2 slot)
- Sensor redundancy for IMU, barometer, magnetometer improves fault tolerance.
- Pitot tube enables real-time airspeed measurement.
Sensor Suite
IMUs (Dual 6‑Axis)
- Redundant accelerometers and gyros for robust motion sensing
- Ensures reliability in aggressive maneuvers and vibration-prone environments
Barometers (Dual)
- Redundant air-pressure sensors to maintain accurate altitude control
- Improves atmospheric pressure compensation and altitude hold stability
Magnetometers (Dual Compasses)
- Onboard compass modules for accurate heading, even when GPS is unavailable
- Redundancy supports continuous navigation in-high interference areas
GNSS Receiver
- Built-in high-sensitivity GPS module
- Connected via M.2 UART lines
- Enables precise satellite-based navigation
Airspeed Sensor (Pitot Tube)
- Integrated digital differential pressure sensor
- Ideal for fixed-wing and VTOL aircraft
- Outputs real-time airspeed data to flight controller
Software
- Plug-and-play support in PX4, ArduPilot, Betaflight and INAV ecosystems
- Full MAVLink compatibility
- Self-contained autopilot - no external wiring needed
- Ideal for both prototyping and production-level UAV systems
