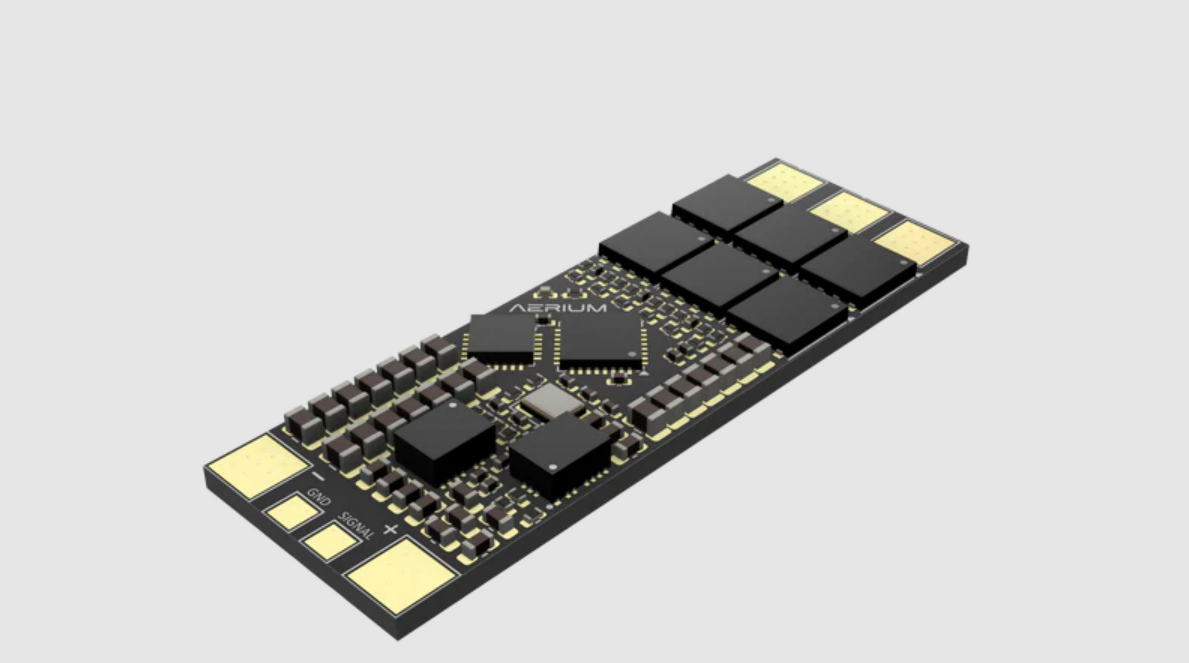

Theta
The Theta is a high-performance brushless electronic speed controller (ESC) designed for drones, UAVs, and robotics platforms powered by 4S–8S Battery systems. Featuring a 32‑bit ARM microcontroller and TI DRV8300 smart gate driver, Theta delivers smooth sine-wave startup, responsive throttle control, and robust protection, running open‑source AM32 firmware.
General
- ESC supports 4S to 8S Battery, ideal for high-voltage systems.
- Built with AM32 firmware, offering sine-wave control, telemetry, and motor protection.
- Features bidirectional telemetry (via BDShot) for real-time feedback and diagnostics.
Resources
Mechanical
- Weight: ~18 g

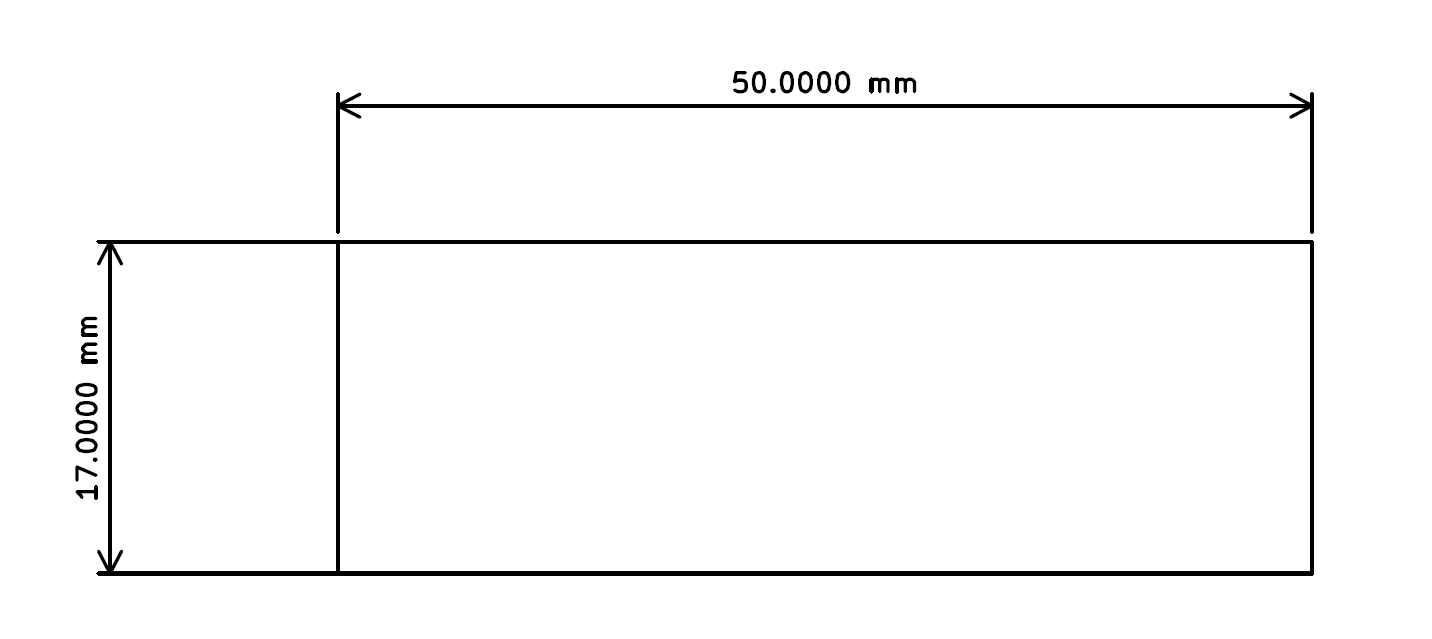

- Dimensions: 17mm x 50mm
Electrical
General
- Supported voltage: 4S–8S Battery
- Maximum continuous current: 60 A
Software
- Runs AM32 open-source ESC firmware
- configurable via AM32 configurator
