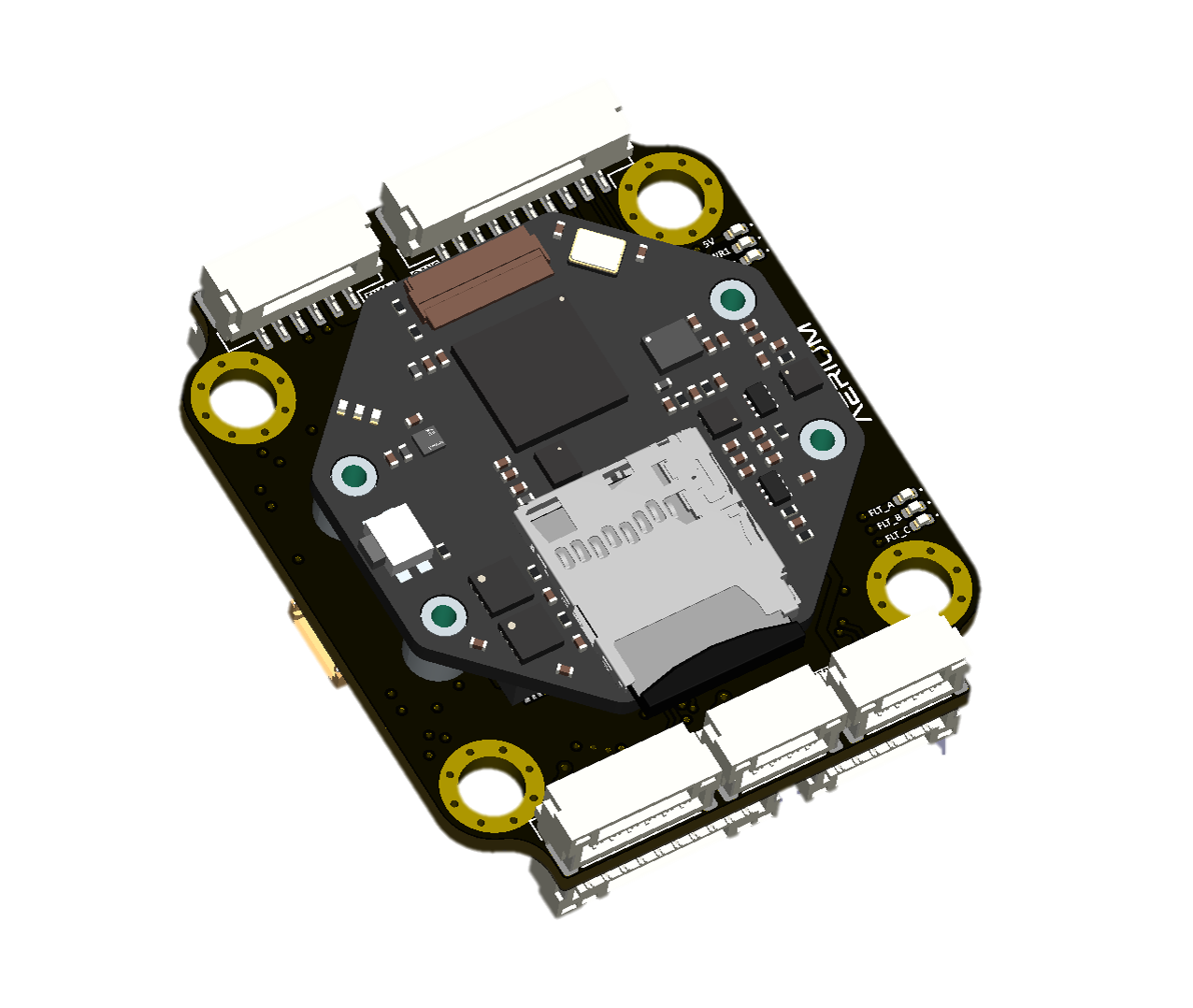

Radian

Radian, a Premier flight control system designed for seamless flight performance and full Pixhawk standard compatibility.

General

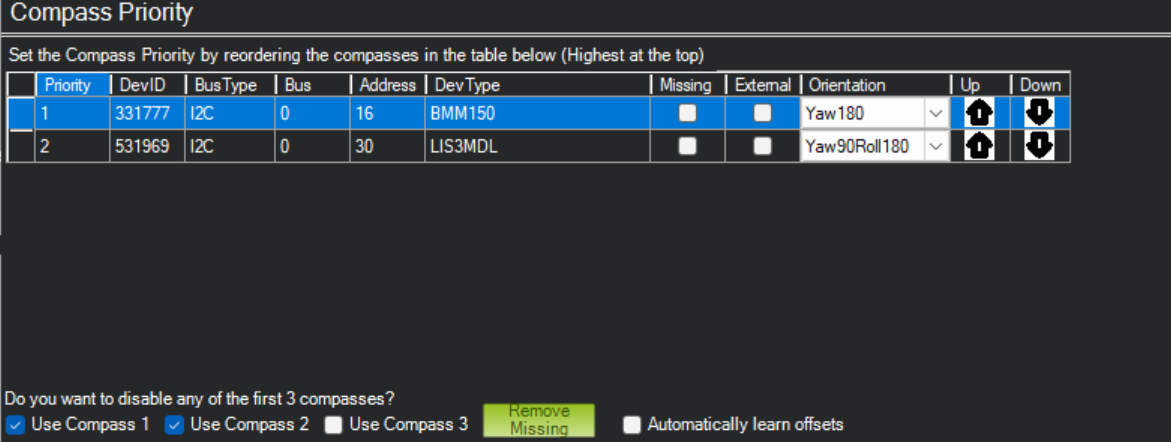

• The Radian is a premier flight control system designed for seamless compatibility with ArduPilot, PX4 and betaflight.
• Radian is engineered for superior performance and versatility using redundant high quality sensors.
• It is the perfect solution for a broad spectrum of UAV applications, from recreational drones to complex commercial and industrial operations

Compatibility

• The Radian introduces a state-of-the-art layout which is both robust and compact.
• The connectors support the Pixhawk connector standard.

Resources

• 3D CAD Model

Mechanical

• The radian flight controller consists of 2 components:

  • FCU - a detachable flight controller unit.
  • Carrier Board - a carrier board for the FCU expanding connectors and power capabilities.

• Weight

  • FCU: 5 [g]
  • Carrier Board: 9 [g]
  • Total Weight: 14 [g]

• Dimensions

  • Board dimensions are defined in millimeters.
  • Mounting hole size is M4, suitable for M3 stacking with silicone dampers.



Electrical

General

• For each connector specification, the pinout orientation is determined by an arrow pointing to pin 1.

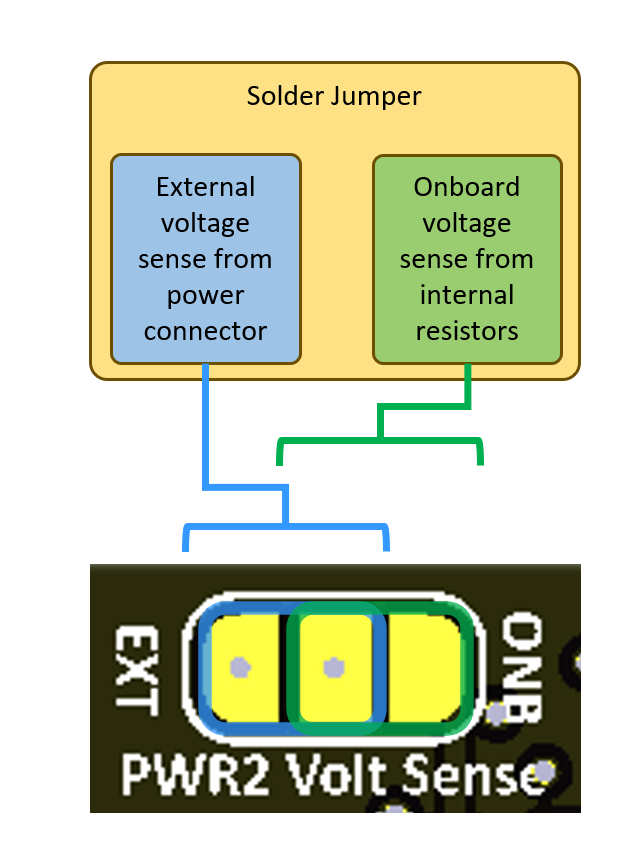

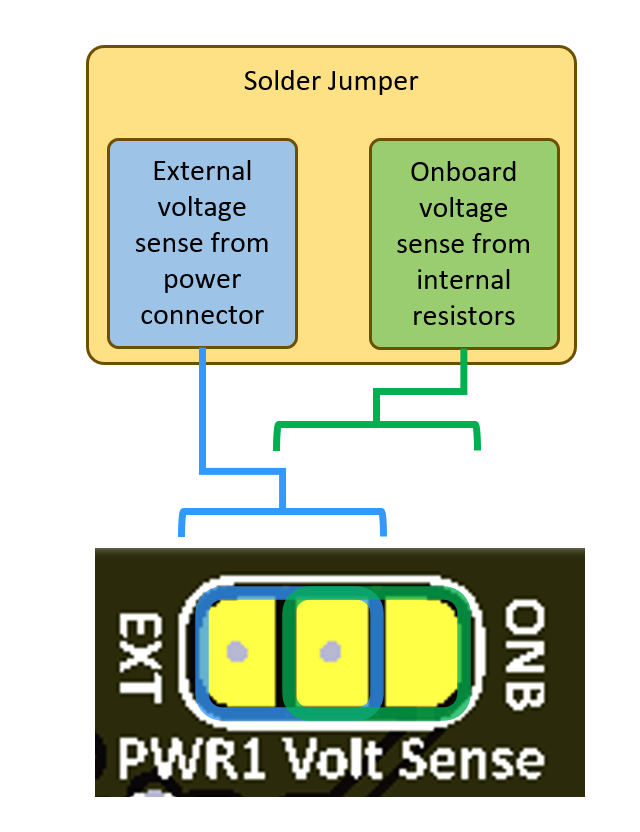

Specifications

• Input voltage: 7-60 [V] (3S-14S)

• GPIO / Communication logic level: 3.3 [V]

  • Warning: do not operate at any other logic voltage level.

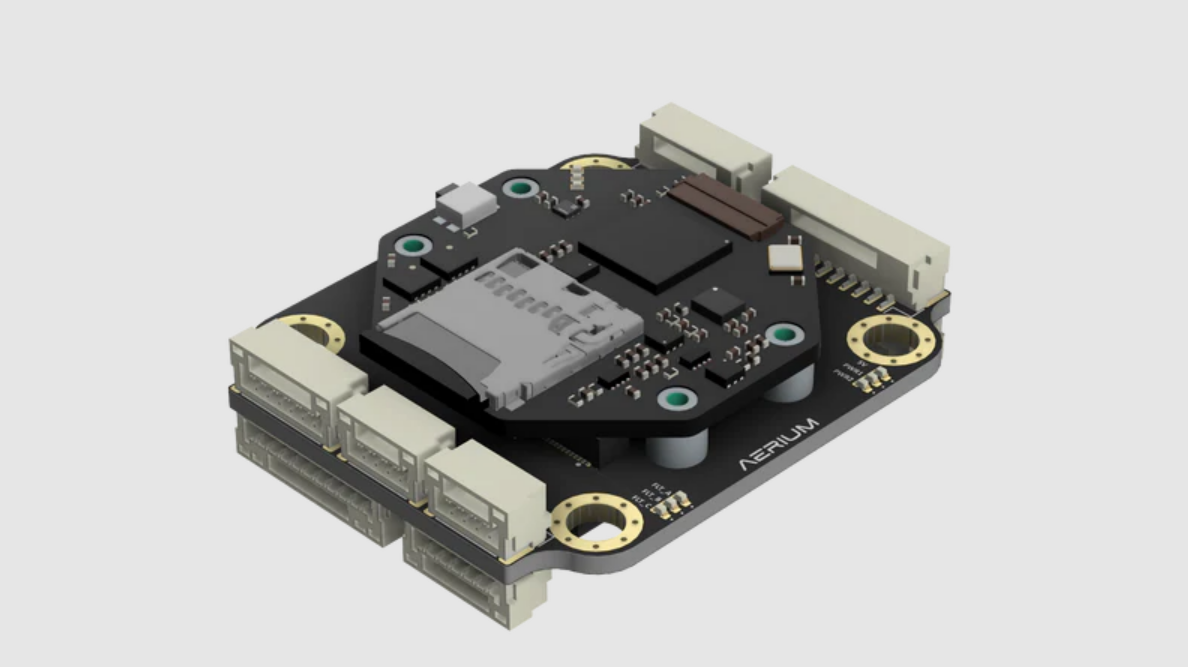

• Top View

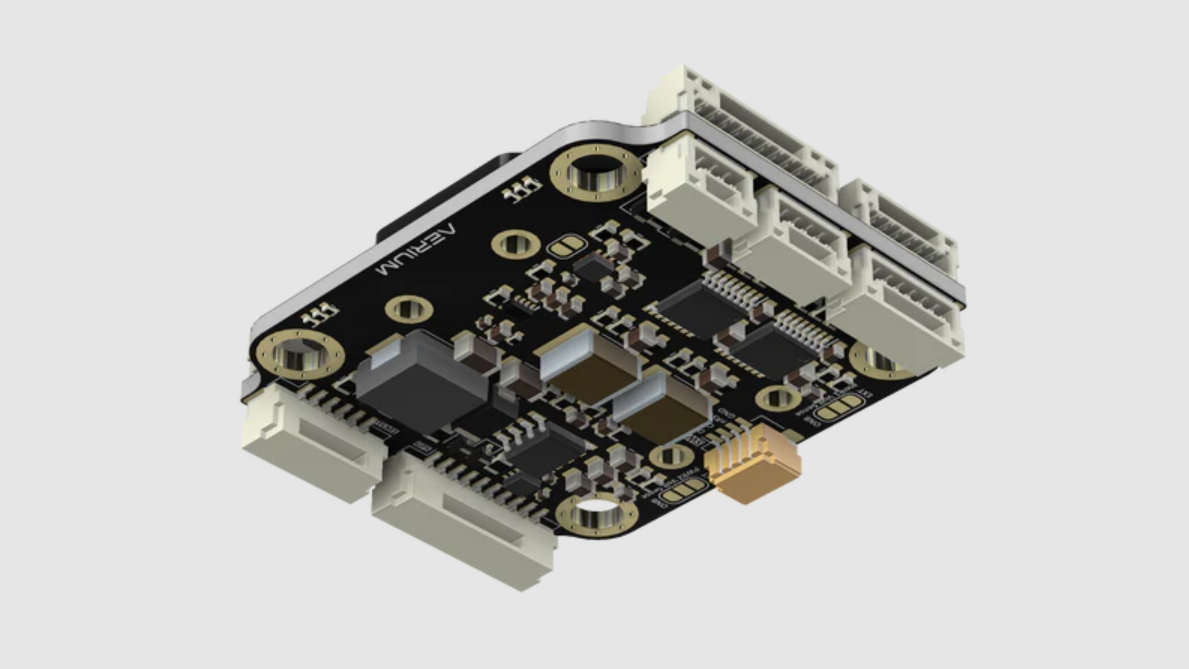

• Bottom View

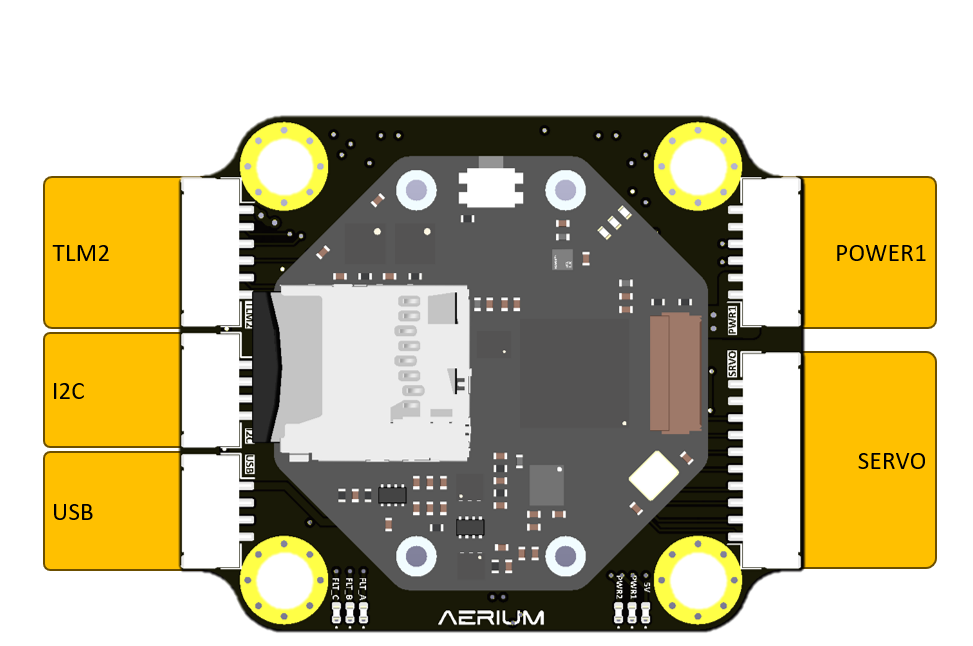

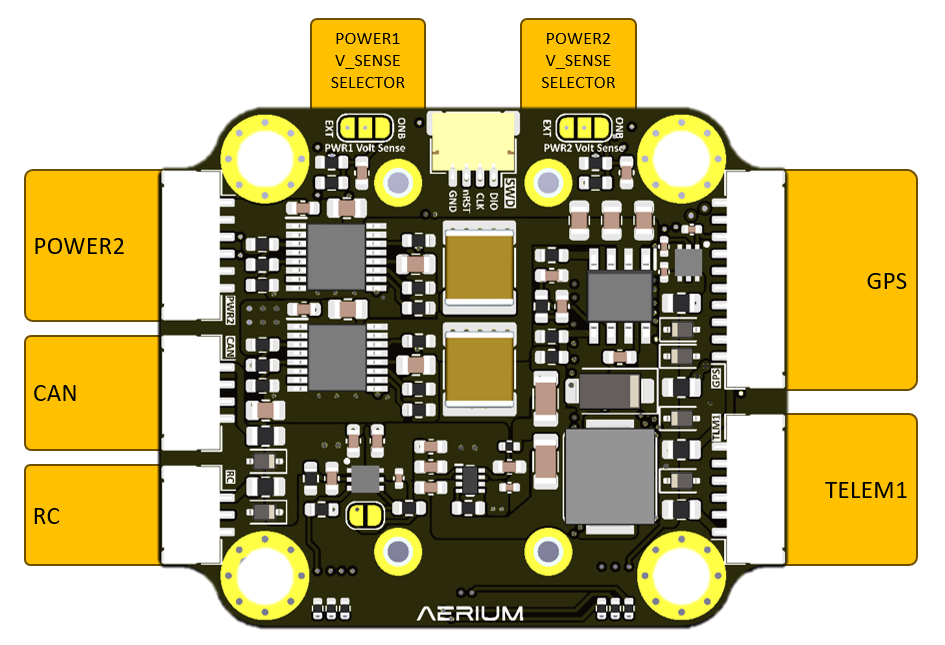

Electrical pinout

• Connector orientation
  • JST-GH cables shall be oriented according to the illustration

FRC Button

• To enter DFU mode, use the FRC button according to the following steps:
  • Power off the board
  • hold the FRC button
  • Power up the board
  • release the FRC button
  • The Radian is now in DFU mode

TELEM1

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM06B-GHS-TB	JST-GH
  Cable Connector	GHR-06V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	UART_TXD (logic 3.3v)
  3	UART_RXD (logic 3.3v)
  4	NC
  5	NC
  6	GND

TELEM2

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM06B-GHS-TB	JST-GH
  Cable Connector	GHR-06V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	UART_TXD (logic 3.3v)
  3	UART_RXD (logic 3.3v)
  4	NC
  5	NC
  6	GND

GPS

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM10B-GHS-TBT	JST-GH
  Cable Connector	GHR-10V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	UART_TXD (logic 3.3v)
  3	UART_RXD (logic 3.3v)
  4	I2C_SCL (logic 3.3v)
  5	I2C_SDA (logic 3.3v)
  6	SAFETY_SW
  7	SAFETY_SW_LED
  8	3.3V_OUT (logic 3.3v)
  9	BUZZER (logic 3.3v)
  10	GND

SERVO (PWM)

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM10B-GHS-TBT	JST-GH
  Cable Connector	GHR-10V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	SERVO1
  2	SERVO2
  3	SERVO3
  4	SERVO4
  5	SERVO5
  6	SERVO6
  7	SERVO7
  8	SERVO8
  9	GND
  10	GND

CAN

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM04B-GHS-TB	JST-GH
  Cable Connector	GHR-04V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	CAN_H (logic 3.3v)
  3	CAN_L (logic 3.3v)
  4	GND

USB

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM04B-GHS-TB	JST-GH
  Cable Connector	GHR-04V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	OTG_5V (input)
  2	USB_D-
  3	USB_D+
  4	GND

I2C

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM04B-GHS-TB	JST-GH
  Cable Connector	GHR-04V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	I2C_SCL
  3	I2C_SDA
  4	GND

RC

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM03B-GHS-TB	JST-GH
  Cable Connector	GHR-03V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	PPM_IN
  3	GND
